Antenna Relocation Kit for Handheld Radios
If you carry a handheld radio while hiking backcountry trails, volunteering for public service events, or working outdoors, you quickly realize how awkward they can be to wear. Having a full-length whip attached directly to a radio on your hip, belt, or chest rig means it is constantly brushing your chin, hooking on low branches, or getting caught between your pack and your body.
An antenna relocation kit solves this problem by separating the antenna from the radio itself. If you are setting up a daypack, chest harness, vest, or a full manpack radio setup, moving the antenna to a dedicated shoulder mount or the back of a pack keeps your gear out of the way and much more comfortable to carry. Here at Iron Spear Outfitters, our hardware is Built for hard work. What follows is a straightforward explanation of how an antenna relocation cable and mounting system work with just about any handheld radio, including Yaesu, Icom, Anytone, Motorola, and similar models.
What an antenna relocation kit does

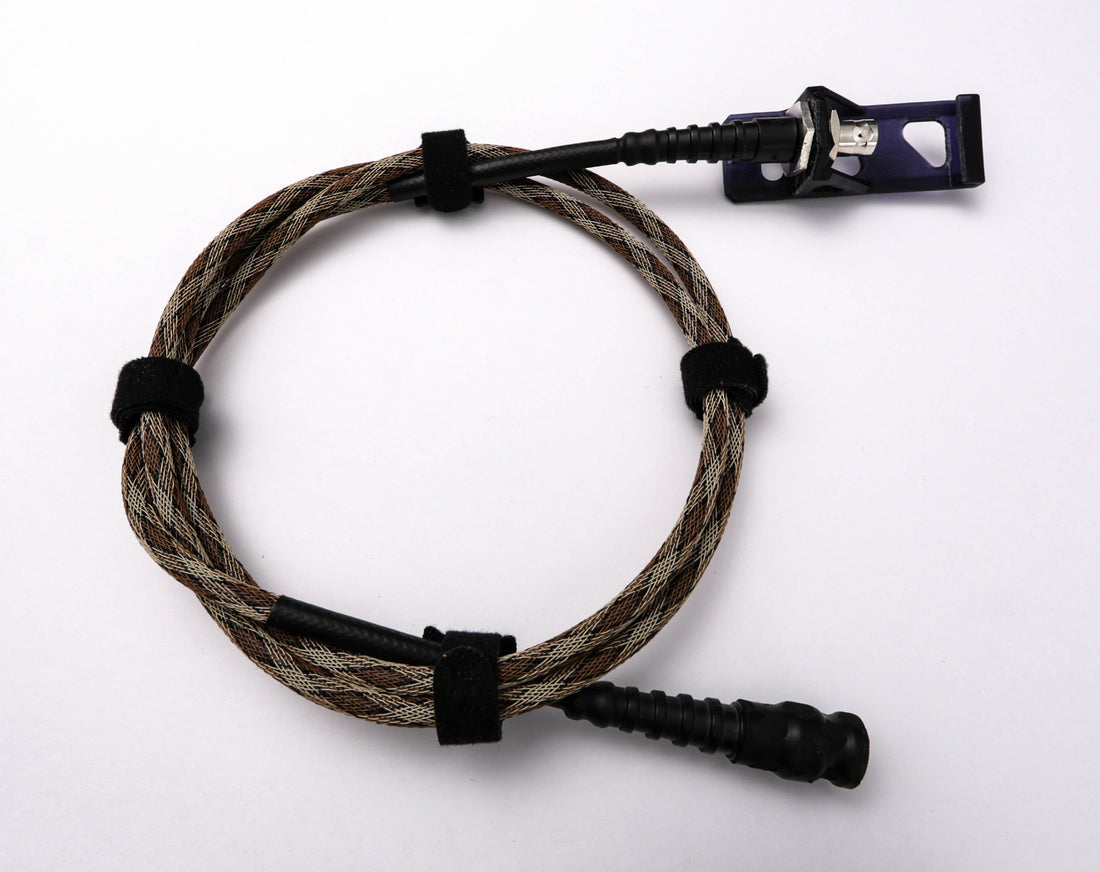

A handheld antenna relocation kit is just a flexible coaxial extension cable paired with a secure way to mount it. Instead of threading your antenna directly into the top of your radio, a low-loss cable runs from the radio connection up to a remote bracket mounted on your gear.
This cable ends at a heavy-duty bulkhead mount, which is usually a BNC connection, secured to your pack straps, webbing, plate carrier, or a belt loop. The antenna sits firmly in this mount, positioned upright and out of your face, while the radio stays easy to reach in a pouch, on your belt, or tucked inside your pack.
Manpack and pack-mounted setups
Relocation kits are not just for clipping an antenna onto the shoulder strap of a daypack. They are also the foundational piece for building manpack and pack-mounted radio setups. You keep the radio on your belt or inside a pack pouch, and the antenna is moved to your shoulder or the rear panel of your pack so it clears your body and stays standing straight up while you hike.
If you are using a shoulder or plate mount, you can anchor the BNC bulkhead on a shoulder strap, chest harness, or webbing. Then, you just route the coax cable down to the radio so the antenna sits upright beside your shoulder instead of poking you in the face.
If you prefer to keep the radio on a belt pouch or inside a designated pocket on your pack, moving the antenna away prevents it from snagging on your hip or getting bent by the compression straps of your bag.
It is worth noting that a relocation kit is purely about improving how your gear carries and feels. Moving the antenna does not amplify power, magically create gain, or guarantee extra range. It simply puts a real antenna in a spot where it can send and receive clearly, away from your body and your gear.
Why you should move the antenna off the radio
Using a radio out in the field always involves physical trade-offs. Moving your antenna off the radio itself provides three practical advantages.
First, wearing a radio on your front strap or waist puts an 18-to-19-inch antenna right in your workspace. Moving it behind your shoulder or to the back panel of your pack keeps it from slapping your face, poking your chin, or snagging on things when you bend over to tie your boots or push through thick brush.
Second, when you wear a backpack or build a manpack, keeping a radio on your hip usually means the antenna gets trapped against the side of the pack, forcing it to bend at an unnatural angle. Mounting the antenna directly to the pack frame or a strap keeps it standing straight up.
Finally, the human body absorbs radio frequency energy. When an antenna is pressed flat against your ribs or stomach, your torso actually blocks half of the radiating pattern. Getting the antenna up onto your shoulder or the top of your pack moves it clear of your body mass and the bulky pouches on your gear.
Getting the right connections
Building a reliable antenna relocation kit relies entirely on matching your connectors correctly. Most handheld radios use SMA ports, which might be SMA-Female or SMA-Male, while the relocation cable ends in an industry-standard BNC connection for a quick disconnect at the mount. A common setup is a Baofeng antenna relocation kit, and that same BNC-first method works perfectly for Baofeng, Yaesu, Icom, Kenwood, Anytone, Wouxun, and many Motorola handhelds once you pick the right flush-mount adapter.
Threading small SMA cables directly onto a radio over and over can strip the soft brass threads and put strain on the internal circuit boards. We suggest standardizing your gear with a BNC quick-disconnect interface using a dedicated adapter. To make sure your adapter sits flush against your radio without leaving a stress gap, you can check the fit with our handheld radio adapter guide or the SMA Gender & Thin-Wall Checker before putting your kit together.
Choosing between a 48-inch and 24-inch cable
Picking the correct cable length keeps you from dealing with giant loops of extra wire while still letting you handle the radio easily.
The 24-inch cable works best for routing gear entirely on the front of your body. If your radio is worn on your belt and you want to move the antenna to a front shoulder strap or chest harness, 24 inches gives you a clean line with no extra slack to tie down.
The 48-inch cable is the way to go for routing around a backpack, building manpacks, or moving the antenna all the way to a rear panel. If your radio sits on your hip or front carrier and the antenna needs to reach the back corner of a large multi-day pack, the 48-inch cable gives you enough length to weave through webbing without yanking the wire tight when you try to unclip the radio.
Securing everything with a bulkhead mount and guide clip
A loose cable and a flopping antenna base will wear out your gear quickly and catch on every passing branch. Getting everything securely attached comes down to two specific parts.
First, a rigid MOLLE antenna mount gives the BNC bulkhead a completely solid foundation. It slides tightly into standard 1-inch PALS or MOLLE webbing on packs, chest harnesses, or plate carriers. This locks the connector in place so you can pop the antenna on or off with just one hand.
Second, adding a low-profile guide clip keeps the flexible antenna held tight against your shoulder strap or pack frame when you are moving through heavy overhead timber. It releases smoothly whenever you need the antenna to stand completely vertical.
Pairing the kit with a flexible whip
Moving a stiff steel or brass antenna to your shoulder or pack can just create a different problem. A rigid rod will catch on tree branches and crank hard on the mount. The whole relocation idea works much better when you pair it with a superelastic memory-alloy antenna.
A continuous Nitinol antenna can bend out of the way of branches, flex safely through closing vehicle doors, and snap back perfectly straight every time. If you want to read more about why superelastic materials work so well for outdoor carry, check out our explanation on the flexible handheld radio antenna whip.
Still using the stock rubber duck antenna?
If you are still running the factory rubber stub that came in the box with your radio, putting it on a relocation cable will not help much. Factory rubber ducks are just tightly wound, compromised coils made specifically to fit inside a small retail box.
Before you spend money on routing cables and brackets, make sure you actually have an antenna that can radiate properly in the field. If you are starting fresh with a new handheld, our guide on how to replace your stock HT antenna clearly explains the mechanical and signal differences.
FAQ
Will this relocation kit fit my specific handheld radio? Yes. The relocation cable uses industry-standard BNC connections. By pairing your radio with an inexpensive flush-mount BNC adapter, which will be SMA-Male or SMA-Female depending on your radio model, you can attach this system cleanly to Yaesu, Icom, Kenwood, Anytone, Wouxun, Baofeng, and many Motorola handhelds.
Can I use this kit to build a manpack? Yes, pack-mounted and manpack setups are a primary reason folks buy these. You put the radio on a belt or in a pack pouch, and the antenna is moved to your shoulder or rear pack panel using the MOLLE BNC bulkhead. Grab the 24-inch version for short shoulder runs and the 48-inch version for routing around a full backpack.
Should I pick the 24-inch or 48-inch cable? Go with the 24-inch cable if you are routing from a belt or chest pouch directly up to a shoulder strap or chest harness on the same side. Choose the 48-inch cable if you are routing from your waist or chest around to the back panel or frame of a backpack.
How do I manage routing and avoid cable strain? Run the cable through your backpack webbing, elastic hydration loops, or MOLLE rows to stop it from catching on things. You want to avoid sharp 90-degree kinks right at the base of the connector. Letting the cable take a natural, sweeping bend keeps the internal wire from breaking over time.
Does an antenna relocation kit guarantee extra range or lower SWR? No. Coaxial extension cables do not amplify radio signals, create gain, or guarantee lower SWR. Relocating simply moves the antenna away from dense body mass and gear, giving it a much better physical position to send and receive signals while making your entire kit much more comfortable to carry.
